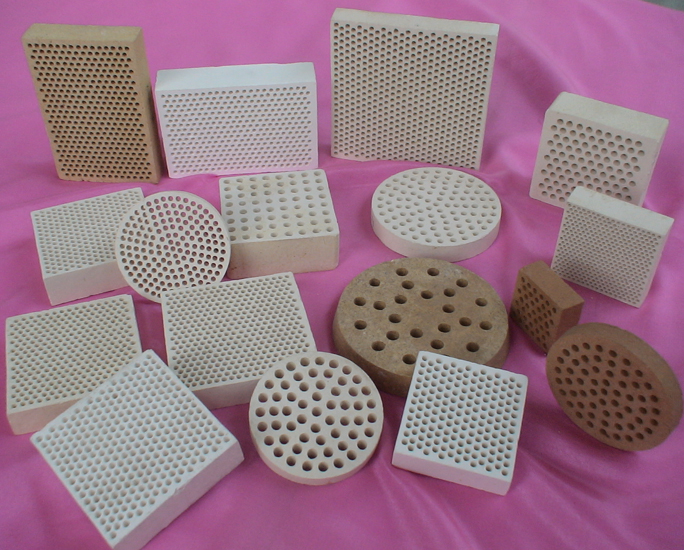

Ceramic filters for foundry & Casting industries

MATERIAL :

Refractory grade ceramics

Alumina

Cordierite

Zircor

Shape : Round, square, rectangle

Size

- Diameter 40 mm to 100 mm

- 50 x 50, 50 x 75, 50 x 100, 60 x 60 , 75 x 75, 75 x 100

- Thickness 12 mm to 22 mm

Benefits of ceramic filters:

Uniform porosity

Consistent flow rate of the molten metal

Uniform hole size

Good cold and hot strength

Low cost compare to foam filters

Up to 1500 c available in various grade material.

Minimize rejection ratio.

Improves productivity

Improve surface finish of metal product

Improve machinability.

Refractory grade used for Grey, Ductile & SG casting

Special for Copper, Brass, Stainless Steel and Alloy steel
