Laboratory Wares

Pure ceramic material for analytical analysis plays vital role due to extreme high temperature, high thermal shock, high mechanical strength, high corrosion resistance, good electrical insulation properties with high purity.

MATERIAL :

  • Alumina up to 99.7%
  • Cordierite
  • Mullite
  • Zirconia

    Products :

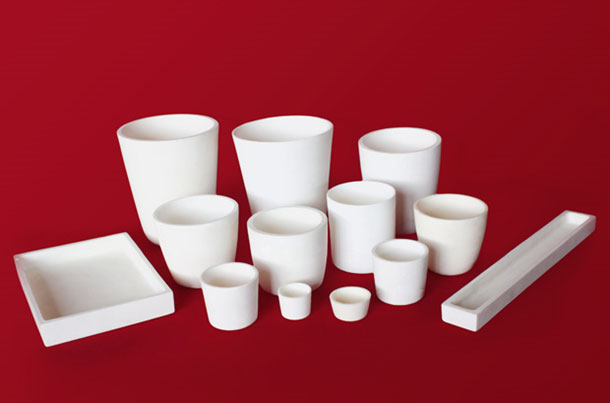

    Crucibles from 1 ml to 1000 ml. in Cylindrical, Conical, Rectangle, Square, Micro crucibles, lids, Dishes, Plates, Tubes, Rods, combustion Boats Muffles, Ceramic stirrers, Ignition dishes, Jar for Jar mill, Porous ceramics etc.

    Kiln Furniture: :

  • Recrystallized tubes
  • Threaded refractory tubes
  • Plates, Saggers, support tubes
  • Mullite , Sic Plates , ceramic papers,
  • High Temperature ceramic boards up to 1600'C.
  • Refractory in Zirconia up to 2200 C application.

    • FURNACES

  • High temperature furnaces up to 1800 C in Box type and Tubular type.
  • Single / multi zone tube furnace.
  • Programmable energy saving controls
  • Various atmosphere control like Vacuum, Argon, Nitrogen for brazing application.

    • APPLICATION :

  • Crucibles, boats for molten samples
  • Chemical analysis
  • Thermal analysis
  • Firing, sintering samples
  • Annealing wire, plates samples
  • Research and development.

    • CRUCIBLES

    MATERIALS:

  • ALUMINA 99.7 %
  • ZIRCONIA 3YPSZ

    • Notes:

    Dimensions listed are relative sizes and should only be used as referance.

    Please request for any specific customized shapes and sizes.

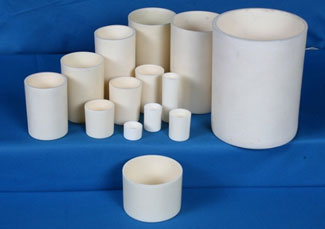

    CYLINDRICAL CRUCIBLES

    ITEM

    OD (INCH)

    OD (MM)

    HEIGHT (INCH)

    HEIGHT (MM)

    VOLUME (ML)

    VCCY-2
    0.55
    14
    1
    25
    2

    VCCY-8
    0.75
    19
    1.3
    33
    8

    VCCY-8.5
    1.42
    36
    0.47
    12
    8.5

    VCCY-12.5
    1
    25
    1.38
    35
    12.5

    VCCY-30
    1.42
    36
    1.6
    42
    30

    VCCY-25
    1.18
    30
    1.8
    45
    25

    VCCY-50
    1.8
    45
    1.57
    40
    50

    VCCY-100
    1.8
    45
    3
    76
    100

    VCCY-250
    2.95
    75
    2.56
    65
    250

    VCCY-500
    3.75
    95
    3.15
    80
    500

    CONICAL CRUCIBLES

    ITEM
    D1 (INCH)
    D1 (MM)
    D2 (INCH)
    D2 (MM)
    HEIGHT (INCH)
    HEIGHT (MM)
    VOLUME (ML)
    VCC-0.4
    0.59
    15
    0.27
    7
    0.275
    7
    0.4
    VCC-1.5
    0.9
    23
    0.83
    21
    0.45
    11.5
    1.5
    VCC-7
    1.18
    30
    0.79
    20
    0.79
    20
    7
    VCC-12
    1.38
    35
    0.98
    25
    1.97
    50
    12
    VCC-60
    2
    51
    1.18
    30
    2.36
    60
    60
    VCC-120
    2.95
    75
    2.165
    55
    1.78
    45
    120
    VCC-350
    4
    100
    2.56
    65
    2.95
    75
    350
    VCC-500
    4
    100
    2.56
    65
    4.33
    110
    500

    RECTANGULAR & SQUARE CRUCIBLES

    ITEM L (INCH) L (MM) B (INCH) B (MM) HEIGHT (INCH) HEIGHT (MM) VOLUME (ML)
    VCRCT-13
    1
    25
    1
    25
    1.18
    30
    13
    VCRCT-1.5
    1
    25
    0.63
    16
    0.197
    5
    1.5
    VCRCT-9
    1.8
    45
    1.3
    33
    0.314
    8
    9
    VCRCT-18
    2
    50
    2
    50
    0.394
    10
    18
    VCRCT-9
    2
    50
    1
    25
    0.394
    10
    9
    VCRCT-35
    4
    100
    2
    50
    0.394
    10
    35
    VCRCT-80
    4
    100
    2
    50
    0.787
    20
    80

    CIRCULAR DISH

    ITEM
    D (INCH)
    D (MM)
    HEIGHT (INCH)
    HEIGHT (MM)
    VOLUME (ML)
    VCDH-8
    1.4
    36
    0.47
    12
    8
    VCDH-16
    2
    50
    0.47
    12
    16
    VCDH-50
    3
    75
    0.6
    15
    50

    CERAMIC DISCS

    ITEM
    O.D (INCH)
    O.D (MM)
    THICKNESS (INCH)
    THICKNESS (MM)
    VCDC-1
    1.4
    36
    0.1
    2.5
    VCDC-2
    2
    50
    0.12
    3
    VCDC-3
    3
    75
    0.12
    3

    CERAMIC LIDS

    ITEM
    O.D.(INCH)
    O.D (MM)
    HEIGHT (INCH)
    HEIGHT (MM)
    VCL-25
    1
    25
    0.08
    2
    VCL-36
    1.42
    36
    0.08
    2
    VCL-50
    2
    50
    0.1
    2.5
    VCL-80
    3.15
    80
    0.12
    3
    VCL-110
    4.33
    110
    0.12
    3

    CERAMIC BOATS

    ITEM
    LENGFTH (INCH)
    LENGTH (MM)
    WIDTH (INCH)
    WIDTH (MM)
    HEIGHT (INCH)
    HEIGHT (MM)
    VOLUME (ML)
    VCB-0.7
    1.18
    30
    0.315
    8
    0.275
    7
    0.7
    VCB-1.8
    1.77
    45
    0.39
    10
    0.315
    8
    1.8
    VCB-3
    2.36
    60
    0.47
    12
    0.315
    8
    3
    VCB-7
    3.15
    80
    0.59
    15
    0.39
    10
    7
    VCB-15
    4
    100
    0.79
    20
    0.47
    12
    15

    RECTANGULAR BOATS

    ITEM LENGTH (INCH) LENGTH (MM) WIDTH (INCH) WIDTH (MM) VOLUME (ML)
    VCRB-2.2
    1
    25
    1
    25
    2.2
    VCRB-5
    1
    25
    1
    25
    5
    VCRB-6
    1.57
    40
    1.18
    30
    6
    VCRB-10
    1.57
    40
    1.18
    30
    10
    VCRB-60
    2.95
    75
    2
    50
    60

    Micro Crucibles for Thermal Analysis

    ITEM OD (INCH) OD (MM) HEIGHT (INCH) HEIGHT (MM) VOLUME (ML) B (INCH) B (INCH)
    VCMC-1
    0.128
    3.25
    0.315
    8
    0.035
    VCMC-2
    0.39
    10
    0.157
    4
    0.17
    VCMC-3
    0.39
    10
    0.315
    8
    0.35
    VCMC-4
    0.39
    10
    0.55
    14
    0.6
    VCMC-5
    0.5
    12.5
    0.63
    16
    1.25
    VCMC-6
    0.63
    16
    0.75
    19
    2.7
    VCMC-R
    0.39
    10
    0.13
    3.3
    0.2
    0.354
    9

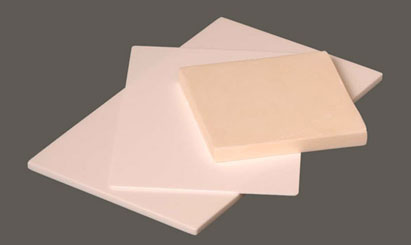

    Plates

    ITEM LENGTH (INCH) LENGTH (MM) WIDTH (INCH) WIDTH (MM) HEIGHT (INCH) HEIGHT (MM)
    VCP-1
    0.39
    10
    0.39
    10
    0.039
    1
    VCP-2
    0.63
    16
    0.47
    12
    0.1
    2.5
    VCP-3
    1.22
    31
    0.433
    11
    0.078
    2
    VCP-4
    1.77
    45
    1.1
    28
    0.157
    4
    VCP-5
    1.97
    50
    1.97
    50
    0.157
    4
    VCP-6
    5.51
    140
    5.51
    140
    0.2
    5

    Tubes & Rods

    Rods -

    Diameter : 4 , 5, 6, 8 and 10 mm

    Length : UP to 300 mm : 25 , 50, 75, 100, 150, 200, 250 and 300 mm

    Single Bore Tubes

    ITEM
    O.D (INCH)
    O.D (MM)
    I.D. (INCH)
    I.D. (MM)
    VCTS-1
    0.078
    2
    0.039
    1
    VCTS-2
    0.126
    3.2
    0.063
    1.6
    VCTS-3
    0.177
    4.5
    0.098
    2.5
    VCTS-4
    0.236
    6
    0.126
    3.2
    VCTS-5
    0.315
    8
    0.197
    5
    VTCS-6
    0.39
    10
    0.256
    6.5

    Double Bore Tubes

    ITEM
    O.D (INCH)
    O.D (MM)
    I.D. (INCH)
    I.D. (MM)
    VCTD-1
    0.114
    2.9
    0.027
    0.7
    VCTD-2
    0.177
    4.5
    0.047
    1.2
    VCTD-3
    0.236
    6
    0.071
    1.8
    VCTD-4
    0.315
    8
    0.102
    2.6
    VCTD-5
    0.39
    10
    0.138
    3.5

    Four Bore Tubes

    ITEM
    O.D (INCH)
    O.D (MM)
    I.D. (INCH)
    I.D. (MM)
    VCTF-1
    0.114
    2.9
    0.023
    0.6
    VCTF-2
    0.224
    5.7
    0.39/2,0.59/2
    1.0/2 , 1.5/2
    VCTF-3
    0.315
    8
    0.071
    1.8

    One End Closed Tubes

    ITEM
    O.D (INCH)
    O.D (MM)
    I.D. (INCH)
    I.D. (MM)
    VCTOC-1
    0.236
    6
    0.138
    3.5
    VCTOC-2
    0.315
    8
    0.197
    5
    VCTOC-3
    0.39
    10
    0.236
    6
    VCTOC-4
    0.47
    12
    0.295
    7.5
    VTCOC-5
    0.59
    15
    0.39
    10

    Fish Spine Beads

    ITEM
    O.D (INCH)
    O.D (MM)
    I.D. (INCH)
    I.D. (MM)
    HEIGHT (INCH)
    HEIGHT (MM)
    VCBEAD-1
    0.118
    3
    0.043
    1.1
    0.118
    3
    VCBEAD-2
    0.157
    4
    0.063
    1.6
    0.157
    4
    VCBEAD-3
    0.197
    5
    0.11
    2.8
    0.197
    5
    VCBEAD-4
    0.236
    6
    0.157
    4
    0.236
    6
    VCBEAD-5
    0.39
    10
    0.39
    10
    0.3
    10
    VCBEAD-6
    0.95
    24
    0.708
    18
    1.16
    29.5
